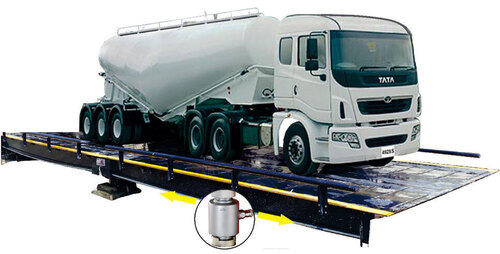

PIT LESS TYPE ELECTRONIC WEIGHBRIDGE

We manufacture high quality Pit less Weigh bridge These are mostly suitable where excavation work for foundation is difficult or construction of pit is expensive. Since the structure is above ground level, vehicles can approach the weigh bridge only from two directions where the ramps are provided. This type of weigh bridge requires more space. Pit less Weigh bridge has some unique benefits over other types of weigh bridges.

Benefits : Costly pit construction is eliminated.

Platform above ground level- No water logging during rainy season
Problem of pit maintenance is eliminated.
Easy maintenance since all parts accessible above ground level.

In Pit less weigh bridge RCC ramp work must be required at least 3 meters for both side for easy movement of vehicle.

Platform Size( Mtr.)

Capacity(Ton)

Graduation(kg)

Number of Load cells

Size of Capacities

4.5 X 2.5

10

2 Kg.

4

6 X 2.5

20

2 Kg.

4

7.5 X 3

30

5 Kg.

4

All models are available from

7.5 X 3m. up to
20 X 3m.

9X3

40/50

5 Kg.

4

Standard capacities range from

1OX3

40/50

5 Kg.

4

20,000 up to
1,00,000 Kg Other

12 X 3

50

5 Kg.

Platform sizes and capacities also

14 X 3

50/60

10 Kg.

6

possible to suit individual requirements

15X3

50/60

10 Kg.

6

and regulations. Load cell range

16 X 3

50/60

10 Kg.

6

includes explosion proof

18X3

60/80/100

10 Kg. / 20 Kg

8

load cells also.

20X3

80/100

10 Kg. / 20 Kg

8

Specifications subject to change without notice

Modular Form

Parallel out put to printer

96 KB switching memory battery backed

22 KB system software

Built in real time clock

100 year software calendar to display day, date, month, year, hours & minutes.

16 character single line & 20 character double line LCD module for user dialogue in a question / answer form.

25mm high 7 segment red led to weight

RS 232C for Interface Pc

LCD output for jumbo display

IBM compatible 104 key board ( AT )
